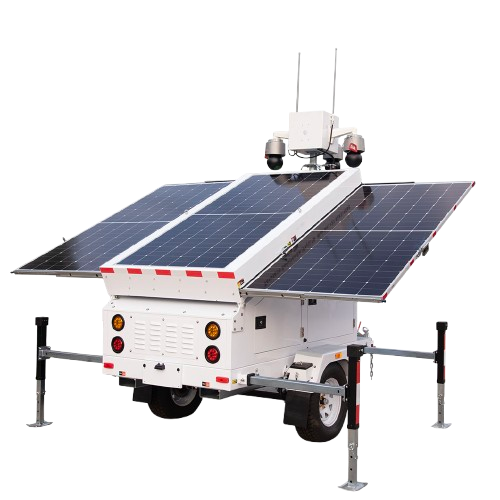

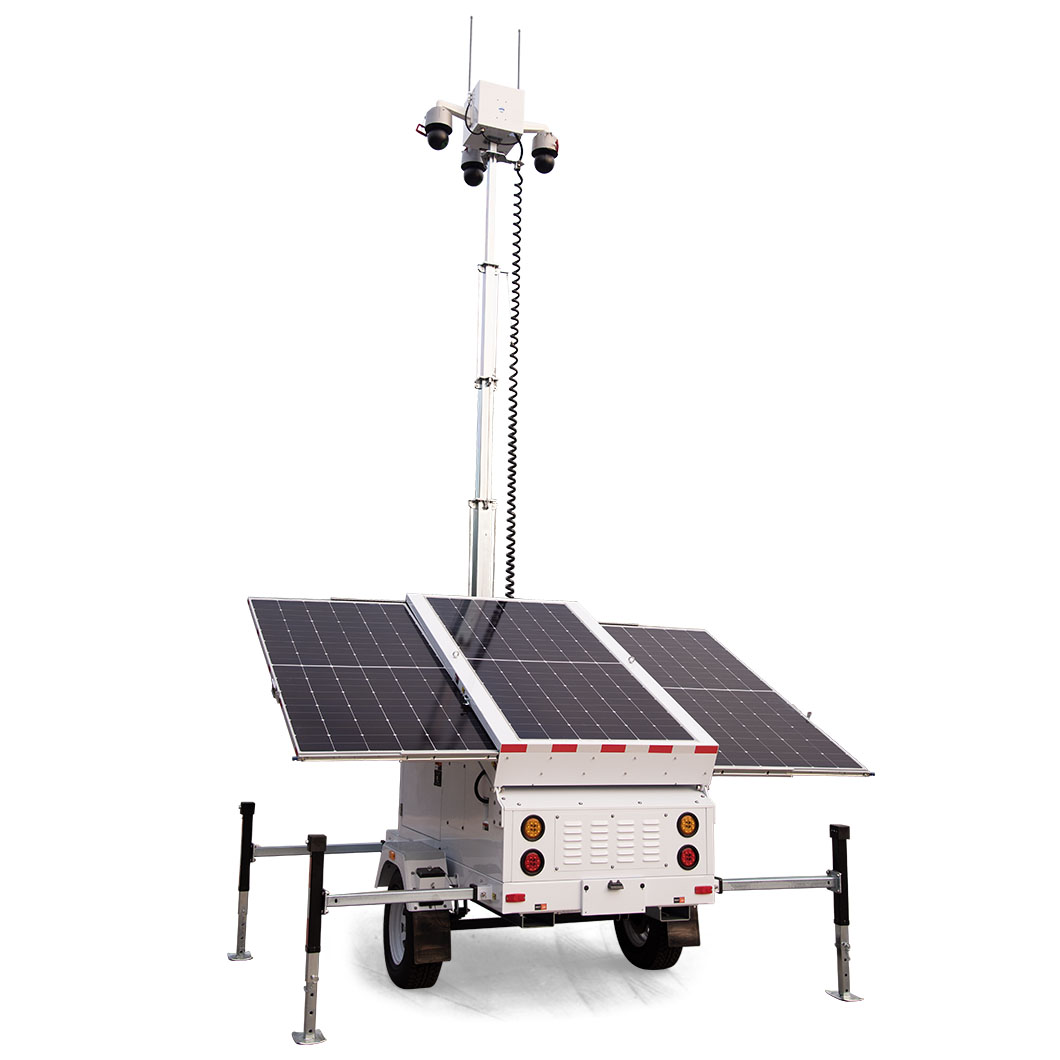

BNE-500BL Mobile Solar Surveillance Trailer
Safe & Reliable
Economical & Efficient
Friendly & Flexible
- 1500W adjustable solar array
- 11.77kWh LFP storage enabling reliable multi-day autonomy
- 22.97 ft telescopic mast for wide-area surveillance
- Dual 4MP TandemVu cameras with built-in NVR
- 4G connectivity for remote monitoring and alerts
- Quick deployment and compact footprint
- Optional upgrades: LED lighting,internal cable mast, backup genset
Optional
- Victron
- Skid Type
- Internal Cable Mast
- LED Light
- Backup Genset
Solar Panel: 1500W
Panel Tilt Angle: 30~45°, Manual Adjustment
LFP Battery: 11.77kWh, 95% DoC
System Voltage: DC 24V
Battery Charger: 1.5KW
Controller: 60A MPPT
CCTV
Camera: 2 × 4MP TandemVu
4G Router: Yes
Loud Speaker: Yes
Storage: 1 × 4TB, 36 Days
Structural & Mast
Hitch: 2″ Ball / 3″ Ring
Brake: Mechanical
Axle: Single
Tire: 15 inch
Outriggers: 4
Forklift Holes: 4
Telescopic Mast: 5 Sections, 22.97 ft
Dimensions & Shipping
Dimension (L × W × H): 139.8″ × 65.0″ × 110.2″
Weight: 2,535 lbs
QTY in 20’/40′: 3 units / 7 units
