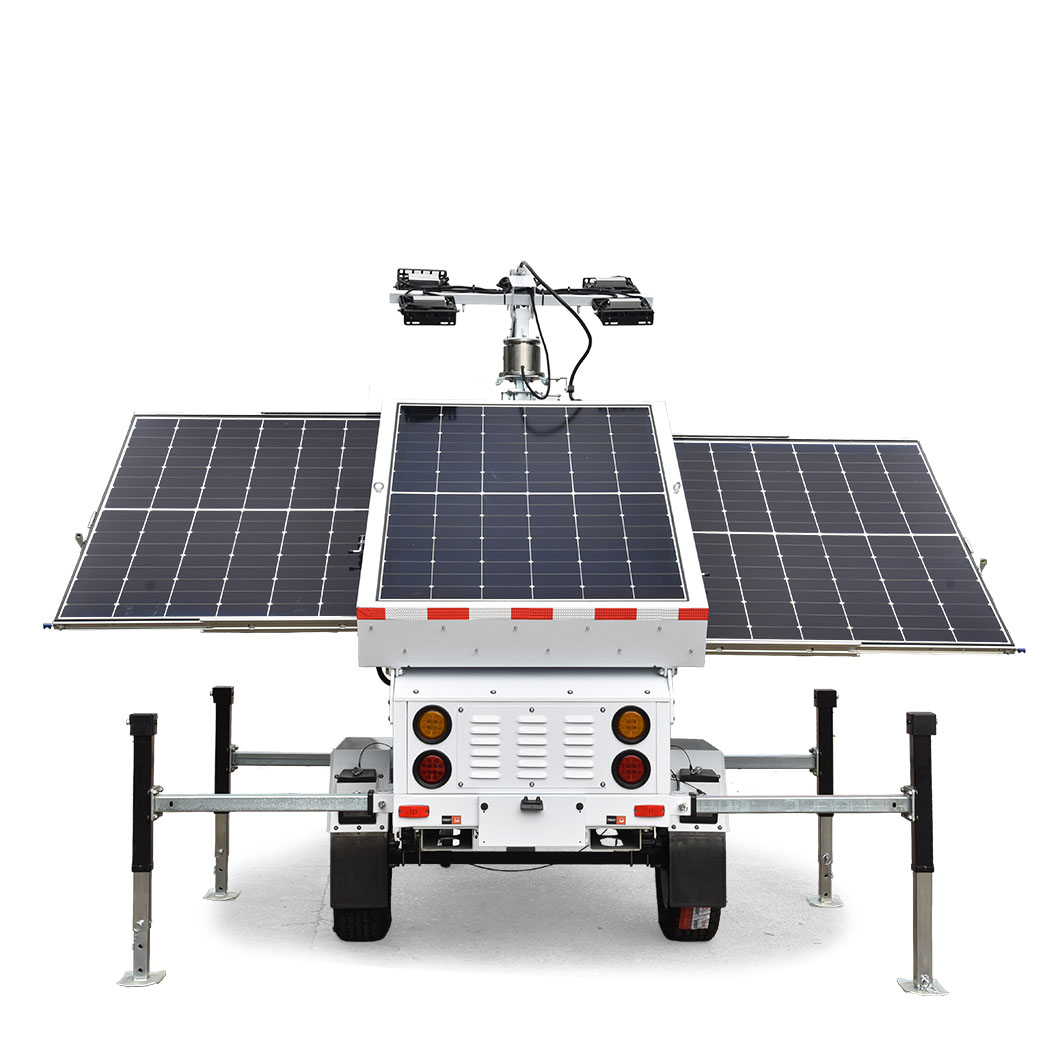

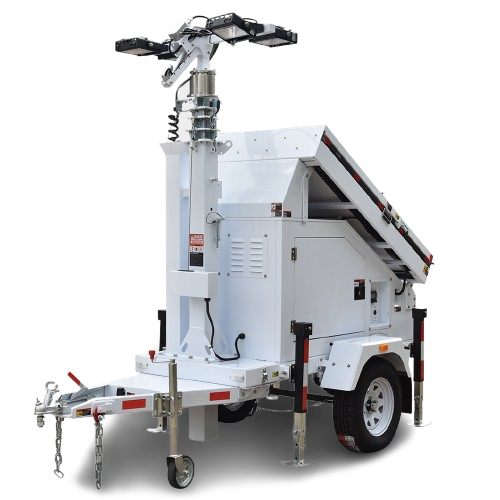

BNE-500AL Mobile Solar Lighting Trailer
Safe & Reliable
Economical & Efficient
Friendly & Flexible
- 4 x 100W high-efficiency LED floodlights Wide-area lighting coverage up to 1,481 m? (@ 5 lux)
- 22.97 ft telescopic mast with electric rotation & tilt 350° rotation and 90° tilt for precise light positioning
- Certified wind resistance up to 68mph Integrated solar + LFP battery, no fuel, no wiring required Silent & zero-emission operation
Optional
- Victron
- Inverter
- Backup Genset
- Security Camera
Solar Panel: 1500W
Panel Tilt Angle: 30° – 45°, Manual Adjustment
LFP Battery: 11.77kWh, 95% DoC
System Voltage: DC 24V
Battery Charger: 1.5KW
Controller: 60A MPPT
Running Time: 28 Hours
Structural & Mast
Hitch: 2″ Ball / 3″ Ring
Brake: Mechanical
Axle: Single
Tire: 15 inch
Outriggers: 4
Forklift Holes: 4
Mast Lifting: Manual Winch
LED Lighting
Telescopic Mast: 5 Sections, 22.97 ft
LED Floodlights: 4 × 100W, Total Output 68,000 lm
Tilt: 90° Electric
Illuminated Area (@5 lux): 1,481 m²
Rotation: 350°, Electric
Dimensions & Shipping
Dimension (L × W × H): 139.8″ × 65.0″ × 110.2″
Weight: 2,535 lbs
QTY in 20’/40′: 3 units / 7 units
